Automated Laboratory
Powder Dispenser

The Gironex Cube combines innovative autonomous technology with a novel robotic dispense system, to make repetitive precision powder dispensing simple and efficient. Compact and easy to use, the Gironex Cube automated powder dispensing system is ideally suited to any R&D laboratory automated powder dosing application.

Gironex Cube Autonomous Powder Micro Dispenser
Tablet PC and software
1 x 24 Place Dial Plate incl stainless steel inserts
1 x 8 Pack of stainless steel dispense heads
CUSTOM OPTIONS AVAILABLE
Gironex AI Technology
Flexible Plate Format
Stainless Steel Re-Usable Dispense Heads
Bluetooth and USB Connectivity
Multiple mass dispenses
Compact Design
Interchangeable Dial Plate
CUSTOM OPTIONS AVAILABLE
Gironex Cube
Range5DP
Capacity24
Mass Range>1 mg
Mass Precision+/- 10 µg
Mass Accuracy>2%
Balance Repeatability+/- 2 µg
Data EntryWindows Tablet PC
Data OutputCSV Data File
ConnectivityBluetooth and USB
Power100-240V 50/60Hz
Dimensions410 x 410 x 600mm
Maximum Balance Load240g
Instrument Weight20Kg
Coffee Bean

Efficient

Coffee Bean

Intelligent

Coffee Bean

Easy to Use

Small in size but powerful in performance the Gironex Cube range is suited to any environment with simple operation, Add Powder, Add Vials or Capsules, Enter desired weights and Press Go.

1

ADD POWDER

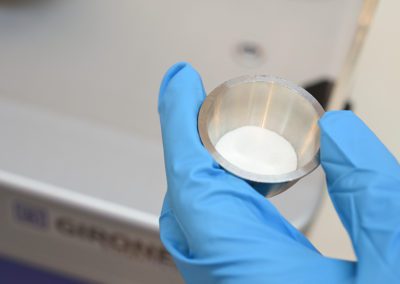

The novel dispense heads are designed to deliver unlimited precise and accurate powder dispensing.

2

ADD VIALS

Flexibility to easily accommodate a range of vials and capsules, the Gironex Cube automatically dispenses milligrams of powder accurately, precisely and safely with unlimited dispensing capability.

3

ADD DATA

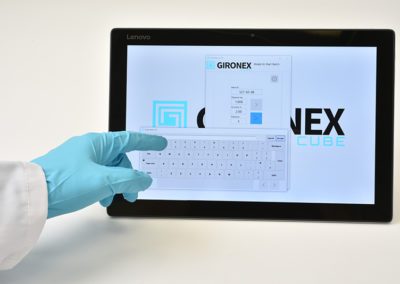

Autonomous weighing at the touch of a button, the state of the art wireless touch screen windows tablet provides simple data entry for the same or different mass dispense requirements, with unique sample identification.

A range of standard accessories are available to ensure efficient precision powder dispensing,
whilst a range of inserts and dial plates adds versatility for capsules and vial applications.

24 Position Dispense Plate Set

Dispense Heads

Dial Plate Insert

More options available on request

YOU MIGHT ALSO BE INTERESTED IN

CFR 21 part 11 compliant

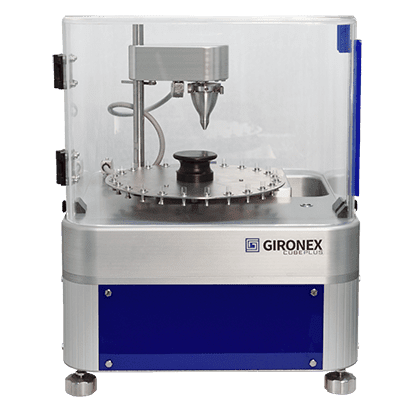

Gironex Cube Plus Autonomous Powder Dispenser
